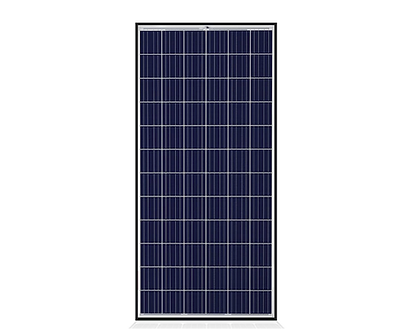

SOLAR PANEL

Mono PERC solar panels combine monocrystalline technology with Passivated Emitter and Rear Cell (PERC) design for superior efficiency and performance. These panels feature half-cut cells that reduce power loss and improve shading tolerance. They offer high energy yield even in low-light and high-temperature conditions, making them ideal for residential and commercial use. With durable tempered glass, anodized aluminum frames, and IP67/IP68 rated junction boxes, Mono PERC panels ensure long-term reliability and weather resistance.

Specifications (Example for 540W Model):

• Peak Power: 540W

• Voltage at Max Power (Vmp): ~41.9V

• Current at Max Power (Imp): ~12.9A

• Open Circuit Voltage (Voc): ~49.8V

• Short Circuit Current (Isc): ~13.5A

• Module Efficiency: Around 20-21%

• Dimensions: Approx 2278 x 1134 x 35 mm

• Weight: ~28.5 kg

• Cell Type: Mono PERC Half-cut cells (144 cells)

• Frame: Anodized aluminum alloy

• Front Cover: Low iron tempered glass with anti-reflective coating

• Operating Temperature: -40°C to +85°C

• Max System Voltage: 1500V DC

• Junction Box: IP67/IP68 rated, 3 diodes

• Connector: MC4 compatible

These panels maximize energy output in compact spaces and withstand harsh environmental conditions, offering excellent durability and long warranties.

Mono PERC Half-Cut Solar Panels integrate monocrystalline technology with Passivated Emitter and Rear Cell (PERC) design, coupled with half-cut cell technology for enhanced efficiency and durability. The half-cut cells reduce electrical losses and improve performance under partial shading and high-temperature conditions. These panels deliver excellent energy yield, making them suitable for residential, commercial, and industrial applications. Built with rugged tempered glass, anodized aluminum frames, and IP67/IP68 rated junction boxes, they guarantee long-lasting reliability and superior weather resistance.

Specifications (Example for 540W Model):

• Peak Power: 540W

• Voltage at Max Power (Vmp): ~41.8V

• Current at Max Power (Imp): ~12.9A

• Open Circuit Voltage (Voc): ~49.7V

• Short Circuit Current (Isc): ~13.4A

• Module Efficiency: 20-21%

• Dimensions: Approx 2278 x 1134 x 35 mm

• Weight: ~28.5 kg

• Cell Type: Mono PERC Half-cut cells (144 cells)

• Frame: Anodized aluminum alloy

• Front Cover: Low iron tempered glass with anti-reflective coating

• Operating Temperature: -40°C to +85°C

• Max System Voltage: 1500V DC

• Junction Box: IP67/IP68 rated, 3 diodes

• Connector: MC4 compatible

These panels provide high power output, compact design, and excellent environmental resilience, supported by robust warranties for dependable, long-term solar energy production.

Topcon Solar Panels utilize cutting-edge N-type TOPCon (Tunnel Oxide Passivated Contact) technology, enhancing efficiency and longevity beyond conventional panels. Featuring half-cut cells with 16 busbar design, these panels reduce electrical resistance and power losses, delivering superior performance, especially in low-light or high-temperature conditions. Their bifacial capability enables them to capture sunlight from both sides, increasing total energy yield. Built with reinforced tempered glass, robust anodized aluminum frames, and IP68 rated junction boxes, Topcon panels are engineered for durability and harsh environments, ensuring long-term reliability and optimal solar energy capture.

Specifications (Example for 570W Model):

• Peak Power: 570W

• Voltage at Max Power (Vmp): ~42.1V

• Current at Max Power (Imp): ~13.54A

• Open Circuit Voltage (Voc): ~50.3V

• Short Circuit Current (Isc): ~14.12A

• Module Efficiency: Up to 22.3%

• Dimensions: Approx 2300 x 1134 x 35 mm

• Weight: ~29.5 kg

• Cell Type: N-type TOPCon Half-cut cells (144 cells, 16 busbar)

• Frame: Anodized aluminum alloy

• Front Cover: Tempered glass with anti-reflective coating

• Operating Temperature: -40°C to +85°C

• Max System Voltage: 1500V DC

• Junction Box: IP68 rated, multi-diode protection

• Connector: MC4 compatible

These panels deliver high energy output, exceptional durability, and advanced technology, making them ideal for residential, commercial, and industrial solar power installations.
